| 起源の場所: | 中国 |
| ブランド名: | Shine Abrasives |
| 証明: | ISO |
| モデル番号: | 4V2 1A1 14A2 9A3 |
| 最小注文数量: | 2個 |
|---|---|
| 価格: | FOB |
| パッケージの詳細: | 紙箱に1個 |
| 受渡し時間: | 5営業日 |
| 支払条件: | LC、T/T |
| 供給の能力: | 1週間で1000PCS |
| アーバーサイズ: | 1インチ | グリットサイズ: | 30/40 |
|---|---|---|---|
| オーバーホール: | カスタマイズされた | 直径: | 30mm-1000mm |
| 製造基準: | ISO9001/GB規格 | 集中: | カスタマイズされた |
| 加工方法: | 焼結 | タイプ: | 研摩ディスク |
| ダイヤの輪の大きさ: | 38×20mm | 輪のグレード: | 大丈夫 |
| 最高の規定回転数: | 4,500 rpm | 材料: | ダイヤモンド |
| 切断直径: | 20mm | 互換性: | 金属,セラミック,ガラス,石 |
| 結合タイプ: | 樹脂 | ||
| ハイライト: | 1A1 resin-bond diamond wheel,CBN grinding wheel for hard materials,diamond CBN wheel with resin bond |
||

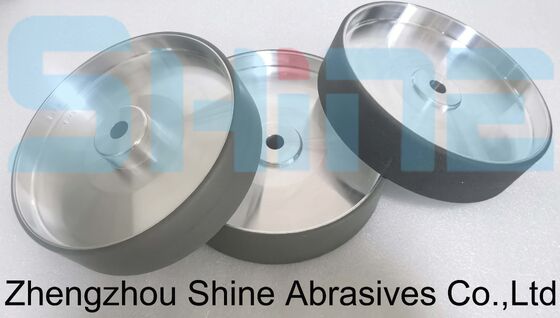

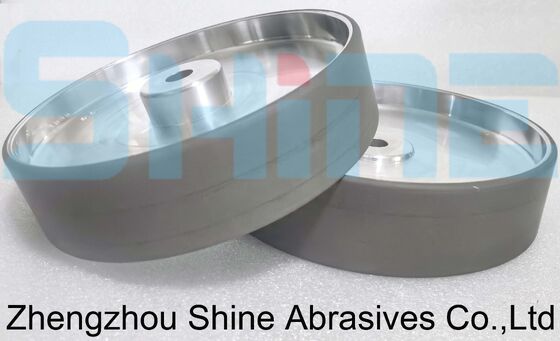

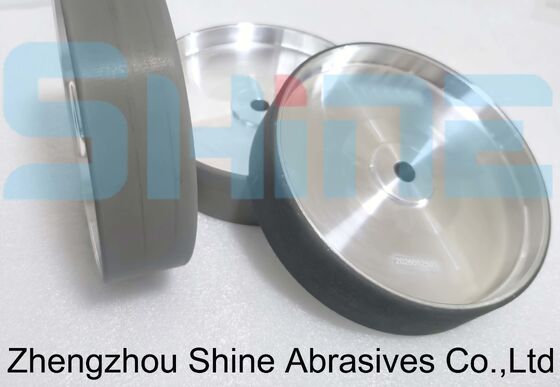

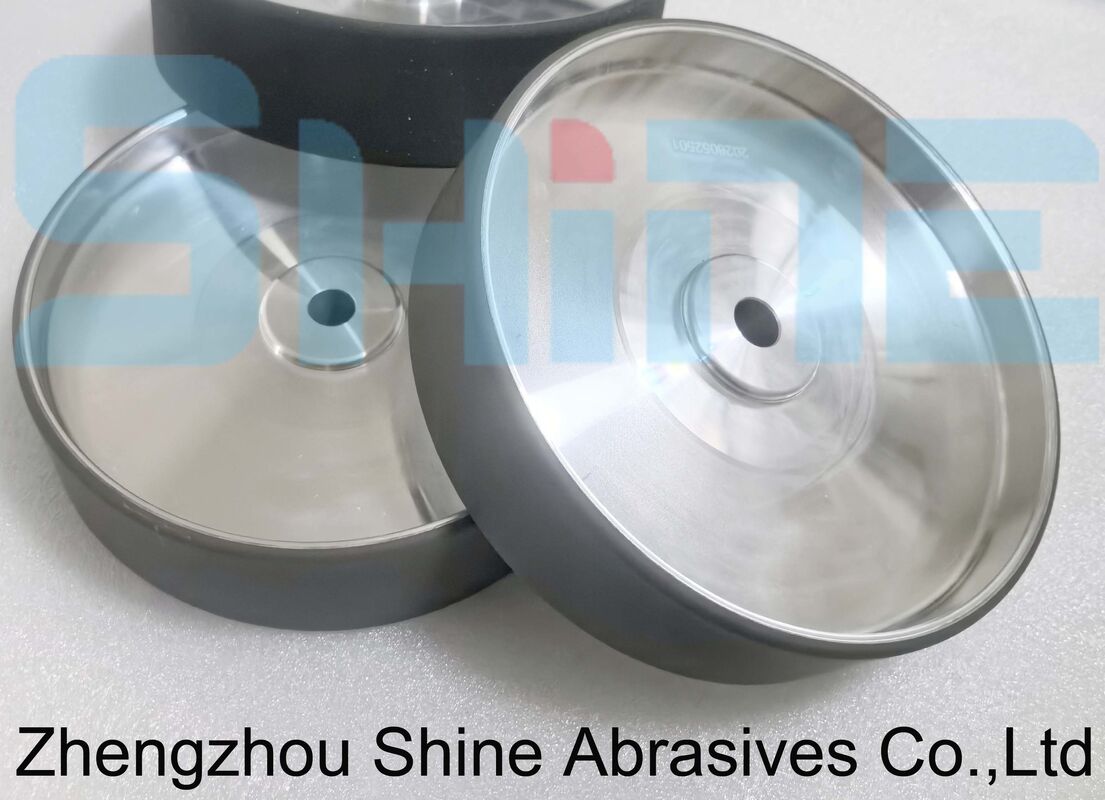

1A1 resin-bond diamond wheel is a flat/straight diamond wheel (disc type) with diamond held by a resin bond.resin-bond diamond wheel means the diamond grains are bonded in a resin (polymer) matrix, which tends to be more flexible/cushioned than many metal bonds.If you share the wheel diameter, grit size, and whether you’re grinding carbide, ceramic, glass, or another material, I can suggest the most suitable grit range and typical operating approach (light pressure, coolant/air blast, etc.)
| Type | 1A1 Flat metal bond diamond grinding wheel |
| Concentration | 50%,75%,125%,150% |
| Mesh |
46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
| Specification |
D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
| Application | ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc |
Tool reconditioning / sharpening (depending on the wheel grit and part geometry)
General bench or surface grinding jobs that require a flat, controlled contact area
Advantages of resin bond for diamond grinding (why it’s used)
Better surface finish: resin bonds often produce a smoother ground surface.
Less chipping: the bond is less brittle, so it can reduce edge/grain-out chipping on brittle workpieces.
Good control in finishing passes: helpful when you need consistent geometry.
Damping effect: resin can reduce harsh vibration compared with very stiff bonds.
