| 起源の場所: | 中国 |
| ブランド名: | Shine Abrasives |
| 証明: | ISO |
| モデル番号: | 4V2 1A1 14A2 1V1 |
| 最小注文数量: | 2個のPC |
|---|---|
| 価格: | FOB |
| パッケージの詳細: | 紙箱に1個 |
| 受渡し時間: | 5営業日 |
| 支払条件: | L/C、T/T |
| 供給の能力: | 1週間で1000PCS |
| 応用: | CNCマシン | スピード: | 6000rpm |
|---|---|---|---|
| 色: | 銀 | 最大圧力: | 5MPA |
| サイズ: | 6インチ | アーバーサイズ: | 7/8インチ |
| 最大温度: | 150°C | ダイヤの輪の大きさ: | 6x6mm |
| 債券の種類: | ハイブリッド | ボンド: | 樹脂 |
| HSコード: | 6804211000 | 効率: | 速い |
| 最大速度: | 100m/s | 最大回転数: | 6000rpm |
| 硬度: | 高い | ||
| ハイライト: | Hybrid bond CNC diamond wheel,CNC flute grinding wheel,high-performance diamond grinding wheel |
||

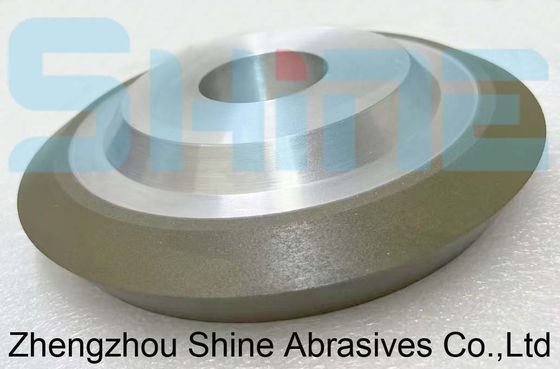

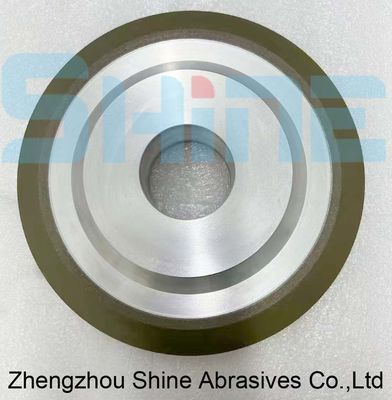

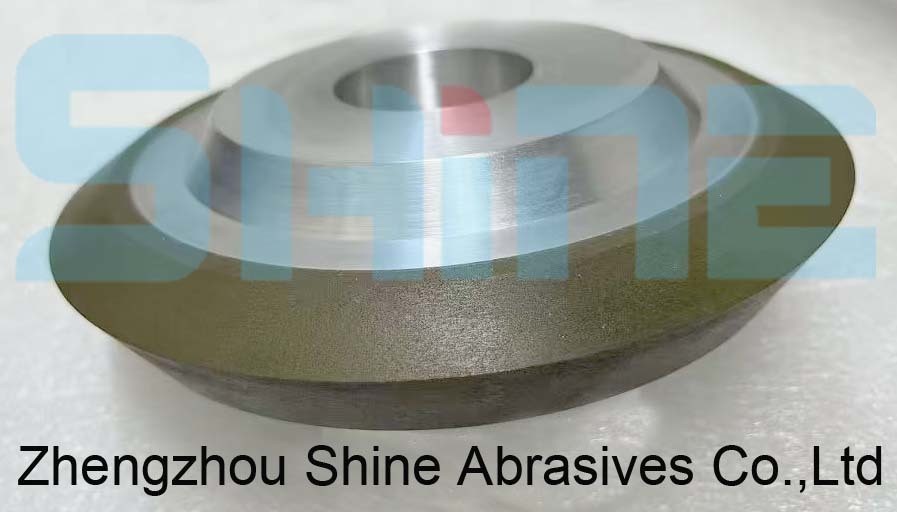

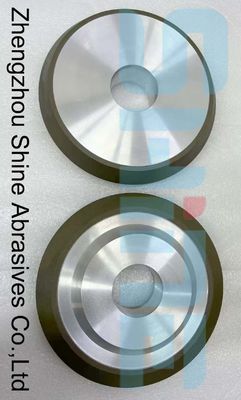

Hybrid bond CNC diamond wheel for high-performance flute grinding.Hybrid bond is Resin Bond, Metal Bond, and or processing methods to create a Hybrid that encompasses enhanced properties to deliver high performance results for some of manufacturing’s toughest grinding applications.
Wheel sizes form:
| Diameter of D | Diamond depth of U | R | X | H |
| 50mm | 2,3,4,5,6,7,8,9,10 | 1/2 U | 3 or 5 or 6 |
12.7,20,25.4 32 customize |
| 75mm | 2,3,4,5,6,7,8,9,10 | 1/2 U | 3 or 5 or 6 |
12.7,20,25.4 32 customize
|
| 100mm | 2,3,4,5,6,7,8,9,10 | 1/2 U | 3 or 5 or 6 |
12.7,20,25.4 32 customize |
| 125mm | 2,3,4,5,6,7,8,9,10 | 1/2 U | 3 or 5 or 6 |
12.7,20,25.4 32 customize
|
| 150mm | 2,3,4,5,6,7,8,9,10 | 1/2 U | 3 or 5 or 6 or 10 |
12.7,20,25.4 32 customize |
| 175mm | 2,3,4,5,6,7,8,9,10 | 1/2 U | 3 or 5 or 6 or 10 |
12.7,20,25.4 32 customize |
| 200mm | 2,3,4,5,6,7,8,9,10 | 1/2 U | 3 or 5 or 6 or 10 |
12.7,20,25.4 32 customize |
Others sizes are available per requested.
*Grinding, PCD, PCBN, CVD, MCD, hard alloy and other cutting tools
*Bonding agents: ceramic bonding agents, resin bonding agents, metal bonding agents
*The particle size can reach up to 10000#
*Cutting edge quality less than 5 microns
*Provide dressing wheels to trim PCD grinding wheels
*Precision grinding: capable of achieving high accuracy and surface finish
*The bowl is mainly used for tool sharpening and surface milling, suitable for grinding metal and non-metal hard and brittle material with low iron content.
